DVB-T en Diversité

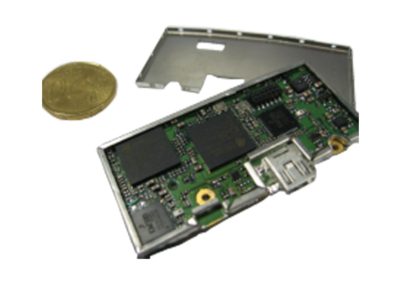

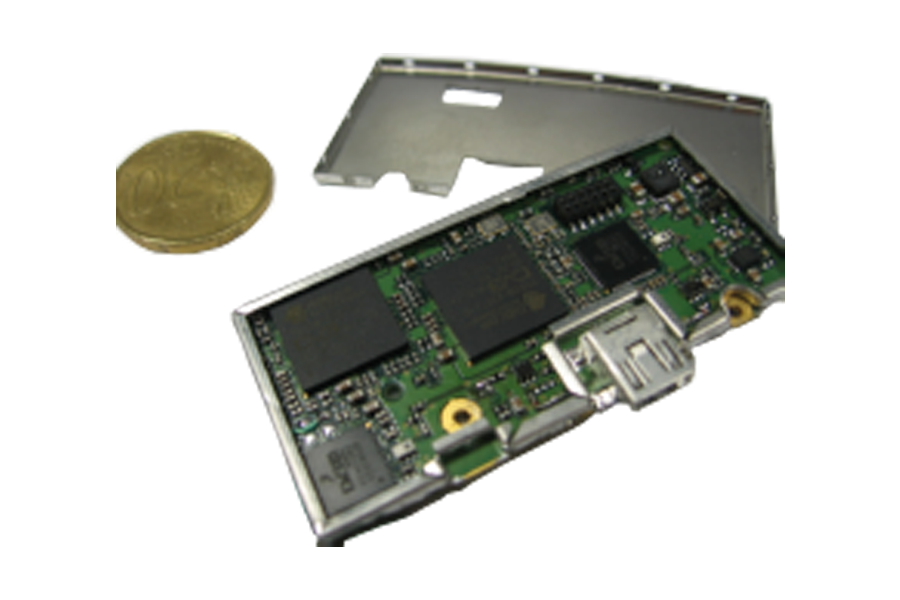

Front-end DVB-T en diversité (2 antennes) pour Portable Media Player (PMP).
Spécifications techniques :
Diversity DVB-H/T front end receiver composed of two Freescale MC44CD02 silicon Tuner and two DiBcomDIB7000-M DVB-H/T Base Band receiver3.3V SDIO-4 interfaceShieldingTuner :
• MC44CD02 single chip Wideband Zero-IF conversion receiver Front-end IC
• Covers the UHF bands IV et V (470-862 MHz)
• Able to handle 6,7,8 MHz bandwidth
• Provide I and Q signals to the DIB7000-H associated demodulatorBase Band receiver :
• COFDM demodulator
• Support 2k/4k/8k
• Compliant with EN 300/744 and EN 301/192Spécifications techniques :
